Ammonia Cracker, Automatic Ammonia Gas Generator Simple Installation
5-1000Nm3/H Ammonia Cracking / Automatic Ammonia Gas Generator Simple Installation
Ammonia Cracking Introduction
The ammonia cracking unit makes use of a nickel catalyst to crack or break ammonia into a mixture of
hydrogen and nitrogen under an endothermic reaction. The raw material for ammonia crackers is ammonia gas
and this gas is easily available in cylinders. When ammonia is passed over the catalyst, the cracking
takes place at 8500 degrees C temperature and it cracks into an N2 + H2 mixture containing 75% hydrogen
and the remaining 25% is nitrogen. The cracked ammonia gas consists of approximately 80 PPM
uncracked ammonia impurities and its dew point is only 300 degrees C. There is a special tank surrounding the
cracker where the nitrogen and hydrogen are separated. Since hydrogen is 14 times lighter than nitrogen, it
rises to the top of the tank, while a special relief valve at the bottom of the tank allows the nitrogen at the base
of the tank.
Condition: New
Type: Resistance Furnace
Usage: Heat Treatment Furnace
Dimension(L*W*H):Various
Weight:3-20ton
Warranty:12 months
After-sales Service Provided:
Engineers available to service machinery overseas
Quality: Superior
Design: Novel
Price: Competitive
Rated heating power of purifier (kw):2~10
Rated ammonia consumption (kg/h):2~16
Catalyzer: Nickel catalyst
Product feature:
With a compact design, and convenient installation, the core part of the cracking system is made of INCO ALLOYS, which is
the material of corrosion-resistant, Alka-resistant, and Acid-resistant, service life is more than 10 years.
Heat preservation of the furnace is full fire structure, with the advantage of rapid temperature rise.
The heating element is made of full alloy, heating type is a plug fuse, it's no need to stop the gas when replacing
the heat elements. Alarm automatically when the pressure has too higher or too lower.
Above are standard fittings, 50-1000Nm3/h ammonia decomposition generator is non-standard equipment, which can be provided according to demand. Fitting also can be upgraded according to requirement:
1. PLC programmed controller can be added, which can automatically control the conversion of various working states of the equipment.
2. Dew point detector can be added.
3. Gas content testing system can be added.
4. Characteristics
(1) Small investment
(2) Reliable performance and long service life
(3) Heating element
(4) Thermal insulation material
(5) Electrical control
(6) Depressurization system
(7) Purification system
(8) Simple installation
(9) Easy operation and maintenance
(10) High safety
Product Tags:
|
|

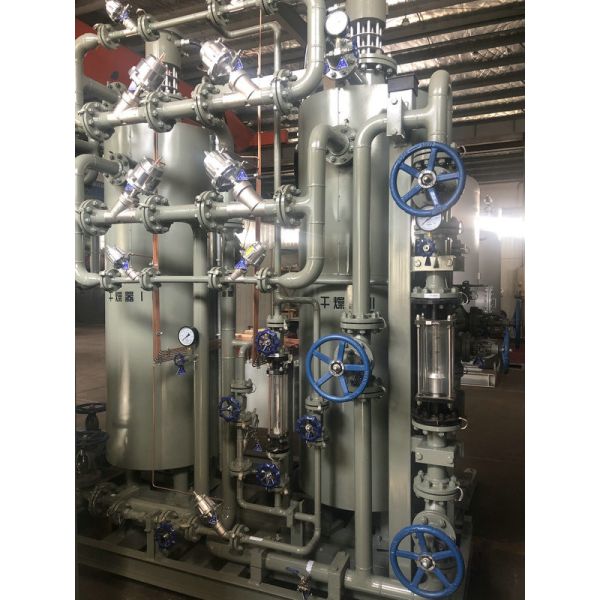

Automatic Ammonia Gas Generator Simple Installation Images
|
